奥地利HAGE工业级3D打印设备140L Featured

技术参数:

 打印工艺: FFF (Rapid Prototyping)
 结构型式: completely assembled
 电源: 230V / 24V DC
 需要压缩空气
 外观尺寸 :1450 x 1250 x 1060 mm
 重量: ca. 400 kg
 LED Innenraumbeleuchtung
 质保期: 12个月

 XXL 打印尺寸: 700 x 500 x 400 mm

 打印床: 温度可达 110°C, 加热功率 1000 W
 打印头: 双挤出机,末端温度可达 300°C (标配) 选配: 可达 450°C*
 Hage 游丝进给系统 HFFS™
 主动冷却
 喷嘴外径: 0,3mm to 0,5mm (0,4 mm 标配)
 定位精度: xy < 0,05mm
 层厚: 最小 50 μm
 移动速度: XY ~ 400 mm/s, Z ~ 300mm/min
 打印速度: up to 150 mm/s( 依材料有所不同)

 触摸屏: 7“
 Sigmatek工业控制系统, HAGE 软件
 2 工作站 (可达4设备) 包含切割软件 (Simplify3D)
 USB独立打印
 Ethernet接口
 远程控制
 事件邮件发送功能
 允许 USB 独立打印

 适用材料广 (不受限于经销商)
 游丝外径: 1,75mm
 打印材料: ASA, M-ABS, PET-G, PC-ABS sowie Nylon*, PSU*, PEI*, PC-PEI* Peek*

¥700 000.00 Add to cart

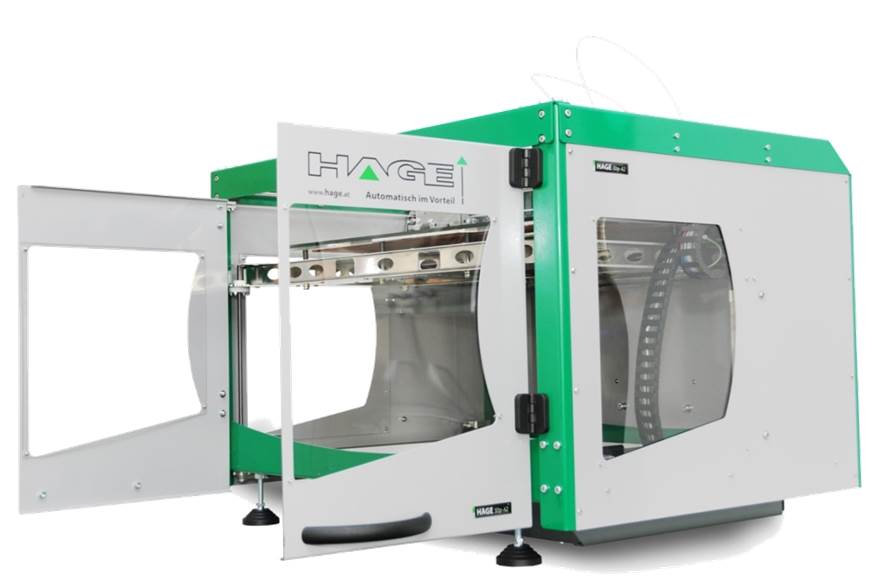

HAGE3D – 新尺寸

hage 3d printer1

The precise HAGE3D printing solutions for most dynamic FFF rapid prototyping processes (Fused Filament Fabrication) guarantee detailed and highly reliable results.

更大空间,更快的工艺处理速度

hage 3d printer

The really big printing chambers are available for all kinds of print-outs. Positioning accuracy
up to 0.1 mm ensures a precise three-dimensional impression.

针对3D打印客户的专项用途开发

hage 3d printer3

Whether inputs and visions come from the market, from customers or from employees: at HAGE, we review ideas regarding their potential and invest in their realization. For example, one of HAGE’s development engineers had the
vision of designing a 3D printing system for industrial use. Today: The solid HAGE3D printing systems are successfully in use and Europe-wide research projects are currently being conducted.


操作灵便

hage 3d printer5

  • From design and prototype, to presentation objects and functional parts
  • Allows for individual configurations, such as printing three materials
  • Flexible part sizes


精度

hage 3d printer2

  • High quality of printing thanks to precision mechanical engineering – even at high speeds
  • Evenness of the printing surface reduces waste and increases print quality
  • The closed-loop stepping motor technology avoids step losses and provides exact positioning


适用性强

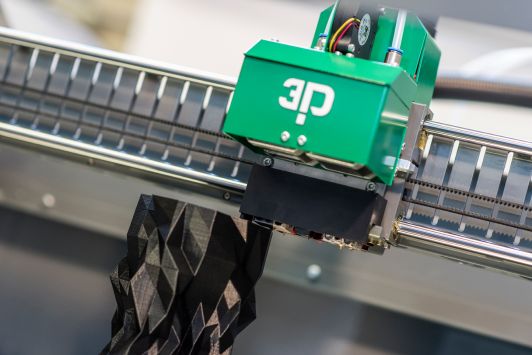

3288 14 druckvorgang web

  • Low filament costs thanks to flexible choice of materials (no vendor lock-in)
  • Wide range of usable materials


专业的切割软件

HAGE 3D printer6

Improve your print quality with Simplify3D®, the powerful 3D printing software that gives you total control for amazing 3D prints:

  • Quick and Easy Startup
  • High Performance Slicer
  • Customizable Support Structures
  • Animated Preview Mode
  • Optimized Dual Extrusion
  • Advanced Multi-Part Printing

技术支持和服务

  • Completely assembled, adjusted and put into operation on site
  • On-site service, intensive user training, user support and 3D engineering
