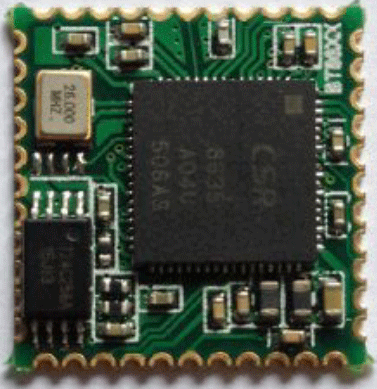

CSR8635/CSR8615 Class2 Stereo ROM Module

Features:

.The module is a Max.4dBm( Class2 ) module.

.Fully Qualified Bluetooth v4.0.

.Integrated Switched-Mode Regulator.

.Integrated Battery Charger.

.Embedded Kalimba DSP Co-Processor.

.Integrated 16-bit Stereo Audio CODEC 93dB SNR for DAC.

.CSR’s latest CVC technology for narrowband and wideband voice connections including wind noise reduction.

.Wideband speech supported by HFP v1.6 Profile and mSBC codec.

.Multipoint HFP connection to 2 phones for voice.

.Multipoint A2DP connection enables a headset(A2DP)  connection  to  2  A2DP  source  device  for

.Support Digital Audio Bus : PCM and I S.

.SBC, MP3, AAC, Faststream,APTX decoder support.

.HSP v1.2/ HFP v1.6/ A2DP v1.2/ AVRCP v1.4

.Voice prompts (SPI Flash)

.RoHS compliant.

.Small outline. 13.4 x13.4 x2.7mm(8M SPI Flash)

                     13.4 x13.4 x1.9mm(64K EEPROM)

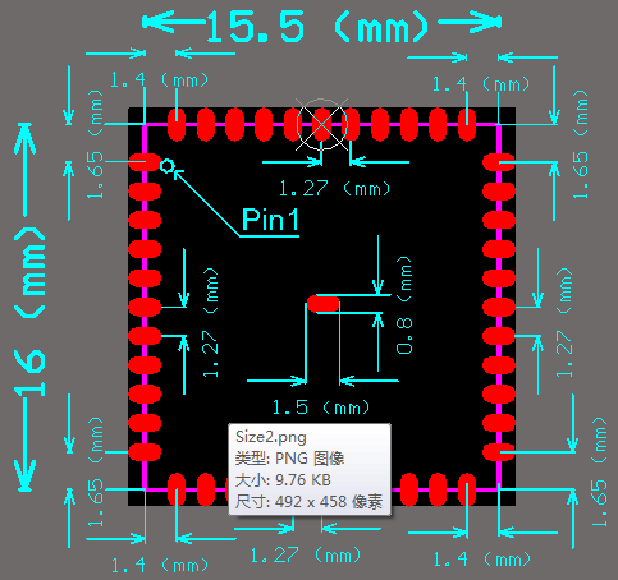

Dimension:

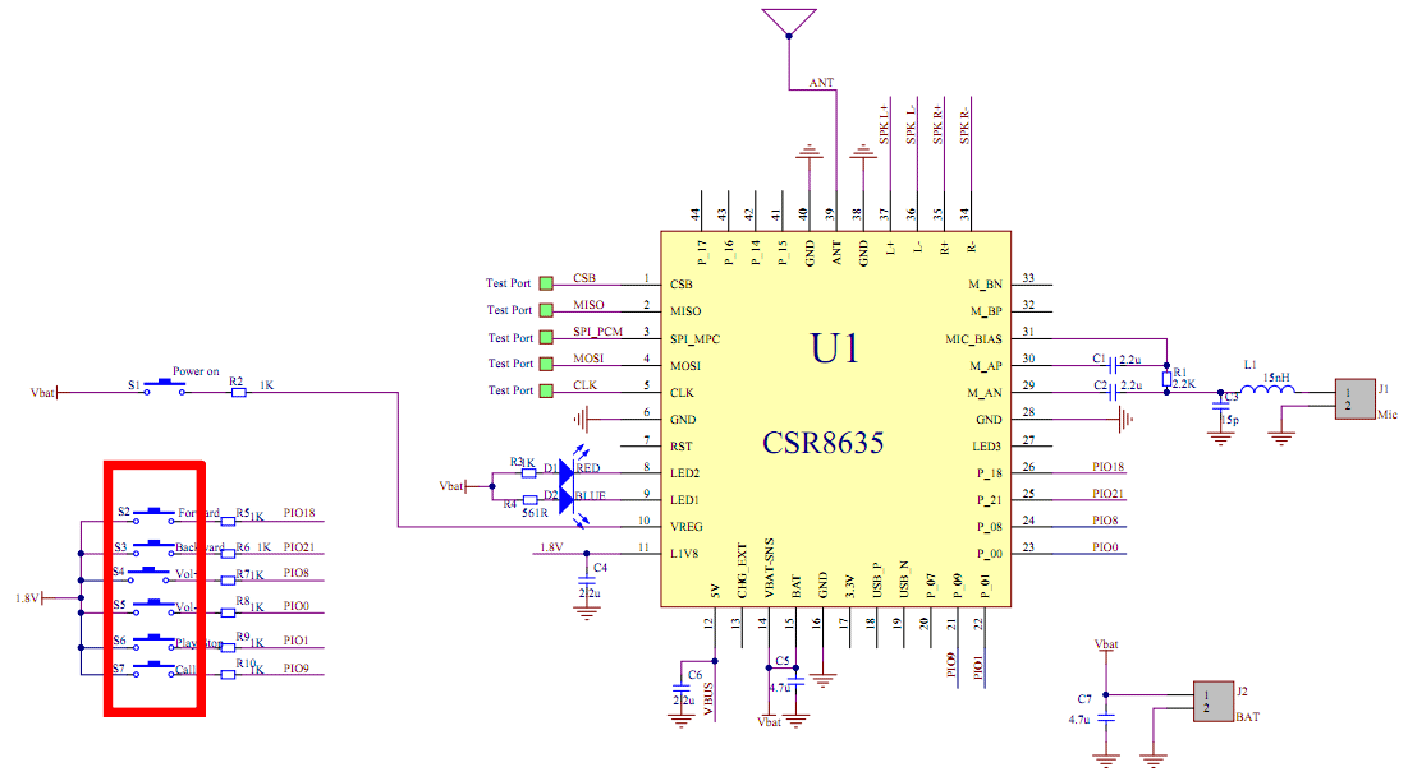

SCH:

Applications

     Stereo Wireless Headsets.

     Wired stereo headsets and headphones.

     Portable stereo speakers
