Bluetooth BLE module

Smart Wireless Solutions

General Description

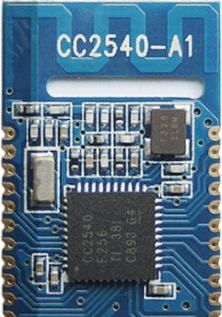

The CC2540 module is a cost-effective, low-power, true system-on-chip (SoC) for Bluetooth low energy applications. It enables robust BLE master or slave nodes to be built with very low total bill-of-material costs. The CC2540 combines an excellent RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful supporting features and peripherals. The CC2540 is suitable for systems where very low power consumption is required. Very low-power sleep modes are available. Short transition times between operating modes further enable low power consumption.

Features and Benefits

. Bluetooth low energy technology Compatible

. Excellent Link Budget (up to 97 dB),

. Enabling Long-Range Applications

. Accurate Digital RSSI

. ComplianceWithFCC& CE standard

. High-Performance and Low-Power 8051 MCU core

. Battery Monitor and Temperature Sensor

. Sample Applications and Profiles

. Full-Speed USB Interface

. AES Security Coprocessor

Applications

. 2.4-GHz Bluetooth low energy Systems

. Mobile Phone Accessories

. Sports and Leisure Equipment

. Consumer Electronics

. Human Interface Devices (Keyboard, Mouse Remote Control)

. USB Dongles

. Health Care and Medical

Electrical Characteristics

RECOMMENDED OPERATING CONDITIONS

CAUTION:

ESD sensitive device. Precautions should be used when handing the device in order to prevent permanent damage.
